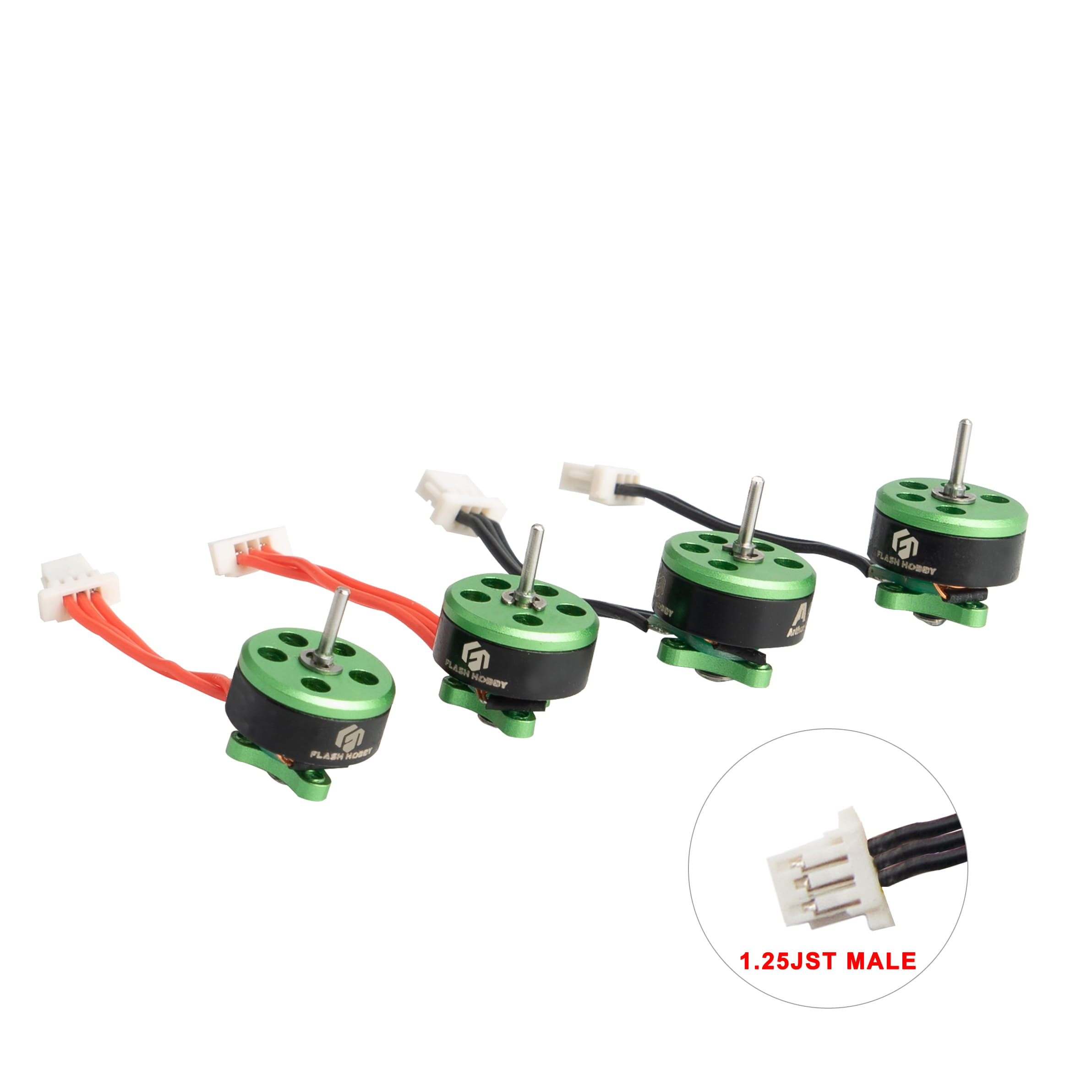

0802 Brushless Motor

The 0802 brushless motor is a type of small-sized brushless motor commonly used in micro and nano-sized drones or other lightweight applications. The "0802" designation refers to the motor's dimensions, with an 8mm diameter and 2mm height.

Here are some key features and specifications typically associated with 0802 brushless motors:

1. Brushless Design: Unlike brushed motors, brushless motors do not have physical brushes and commutators, resulting in improved efficiency, higher power-to-weight ratio, and longer lifespan.

2. Size and Weight: The 0802 brushless motor is compact and lightweight, making it suitable for micro-sized drones and other small-scale applications where space and weight are limited.

3. KV Rating: The KV rating indicates the motor's speed characteristics. The "KV" stands for the RPM (revolutions per minute) per volt applied. 0802 motors typically have a KV rating in the range of 14000-19000 KV, which means that for every volt applied to the motor, it will spin at a specific RPM range.

4. Voltage Range: 0802 brushless motors are designed to operate within a specific voltage range, typically around 1-4S (3.7V-14.8V). It is essential to match the motor's voltage rating with the power supply (battery) used to ensure proper operation.

5. Power Output: These motors are capable of producing enough power to drive small propellers efficiently. The power output is influenced by factors such as voltage, current, and propeller size.

6. Configuration: 0802 brushless motors usually have a 2-wire configuration, where two wires provide the electrical connection to the motor. The rotation direction can be reversed by swapping the connection of these wires.

7. Mounting Pattern: The 0802 motors typically have a mounting pattern with two screw holes spaced 5.5mm apart, allowing them to be securely attached to a frame or motor mounts.

8. Compatibility: These motors are often compatible with flight controllers and electronic speed controllers (ESCs) designed for micro-sized drones. They can be used in both quadcopter and multirotor configurations.

9. Propeller Size: The suitable propeller size for 0802 motors is generally in the range of 40mm-60mm diameter, but it may vary depending on the motor's KV rating and the desired performance.

10. Applications: 0802 brushless motors are commonly used in small FPV racing drones, indoor drones, Tiny Whoops, micro brushless quadcopters, and other lightweight flying platforms.

It's important to note that specific specifications and features of 0802 brushless motors may vary between manufacturers and models. Always refer to the motor's datasheet or manufacturer's guidelines for precise specifications and recommendations regarding usage, voltage, propeller size, and other important considerations.
